Product overview

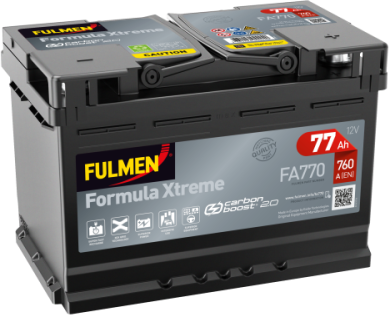

Formula Xtreme FA770
Part number
FA770
Technology
Flooded
Voltage
12 V
Capacity
77.0 Ah
CCA
760 A
Length
278 mm
Width
175 mm
Height
190 mm
Box size
L03
Polarity
ETN 0
Terminal Type
EN taper post
Hold Down
B13
Weights (subject of variation)
17.50 kg
OE Cross-References:
130757215158324681002550503182517782136067770807175114371751146
4D09151054D0915105A
61212432655612169463326121760481361217604818612183853956121838695161214141569612169178846121755395261217604814612183611926121836119361218381726612183817306121838173461218381741
5033394AABA00L4800WBA94R800AABBAH7800AABE0H7800AABE0H7800ABBL0H7800AABP0H7800AA
16092324805600GR5600GX5600LT5600QA5600SX5600TC5600TR79055255677905525777
2.9559.075.0-DF
133438408015158324641385646810025505031795177821360672124606721286067770860779202717169887171945671730468717316597173635671751143717511467571547
11331301U2J10655D4AVCY1510655AA
12799752190018951900189893189440
31500SEFE01HE31500-SEF-E01-HE
01579A108KE3710074C0
299467848480979316232699958579
70810000
5033394AA5033394AB56029695ABBA00L4800WBA94R800AABBAH7800AABBH7A001AABE0H7800AABE0H7800ABBL0H7800AABP0H7800AA
01579A108K
151583246810025517782137175114371751146
YGD500100
43134752363255412401A0009820108A0009823108A0009823708A0035417301A0055412401A2405410201
24410-2X101244103X10AKE24170D00NYKE24175E00NY
1900189519001898
5600GR5600GX5600LT5600QA5600SX5600TC5600TR79055255677905525777
9996110700099961107500
77112385987701376965771122278177113554868200472779
5001873245
61210147399
12799128
73325167
8E0915105L
3B0915105B
33610-79J10
28800-0G05028800-0N04028800-0N06028800YZZHY
000915105AE000915105AF000915105DG1J0915105AE1J0915105AF1L0915105E5K0915105G8E0915105B
30772219307722203077222331255362
1H0915105A1J0915105C1J0915105G1J0915105M1J0915105N2D09151054D09151054D0915105A7D0915105B7D0915105C7L0915105
Polarity
Terminal Type
Hold Down
