Product overview

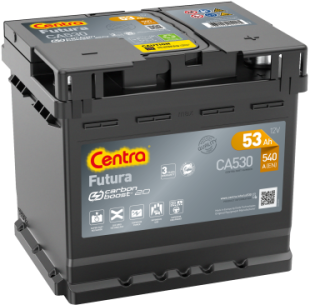

Futura CA530
Part number
CA530
Technology
Flooded
Voltage
12 V
Capacity
53.0 Ah
CCA
540 A
Length
207 mm
Width
175 mm
Height
190 mm
Box size
L01
Polarity
ETN 0
Terminal Type
EN taper post
Hold Down
B13
Weights (subject of variation)
12.70 kg
OE Cross-References:
60677703071751139
7N0915105
5600KJ5600LR5600TN5600TP5600Y07905525547
6001547710
4675613146756136468100224683250946832509046832714505002125176019351760308517611455176309551767152517801065178010751780108517848525181027060006259206077872160778722607787236077872471730453717304667173165871751139757154675715817699835
1U2J-10655-A4A3U2J-10655-AALX6T-10655-BA
13502368
371100N200371101C101371101J68037110A6000
71751139
A4515410002
1201005120101212010281201029120103012011281201129120126712012831201284120133313502901190011771900118419001474190014751900188819001889190019161980841S1983678198367919837091983767198376819837861983787911095559316848895523429
5600KJ5600LR5600TN5600TP5600Y07905525547
7711355484771122277977112385968200377257
4515410002
2680235000
000915105AB000915105DC5K0915105C
13502901190011771900118419001474190014751900188819001889190019161980841S1983678198367919837091983767198376819837861983787911095559316848895523429
11807951
000915105DB000915105DC000915105DP5K0915105A5K0915105C5Q0915089B7N0915105JZW915105C
Polarity
Terminal Type
Hold Down
Design, features and specifications are subject to change without notice. We disclaim any representation or warranty, express or implied, concerning the data or recommendations, and in no event shall be liable for any loss or damage claimed to have arisen as a result. Some products may not be available in your local market.
