Solition Data Center

Tailormade for these applications:

Ultimately, Solition Data Center’s outstanding performance, in all types of grid conditions, as well as the clever features, makes it the perfect partner not only for data centers, but for UPS, telecom and utility applications as well.

Data center

Commercial & Industrial UPS

Solition Data Center, back-up power for Data Centers, industrial and commercial back-up power

Tough demands outside, smart solutions inside.

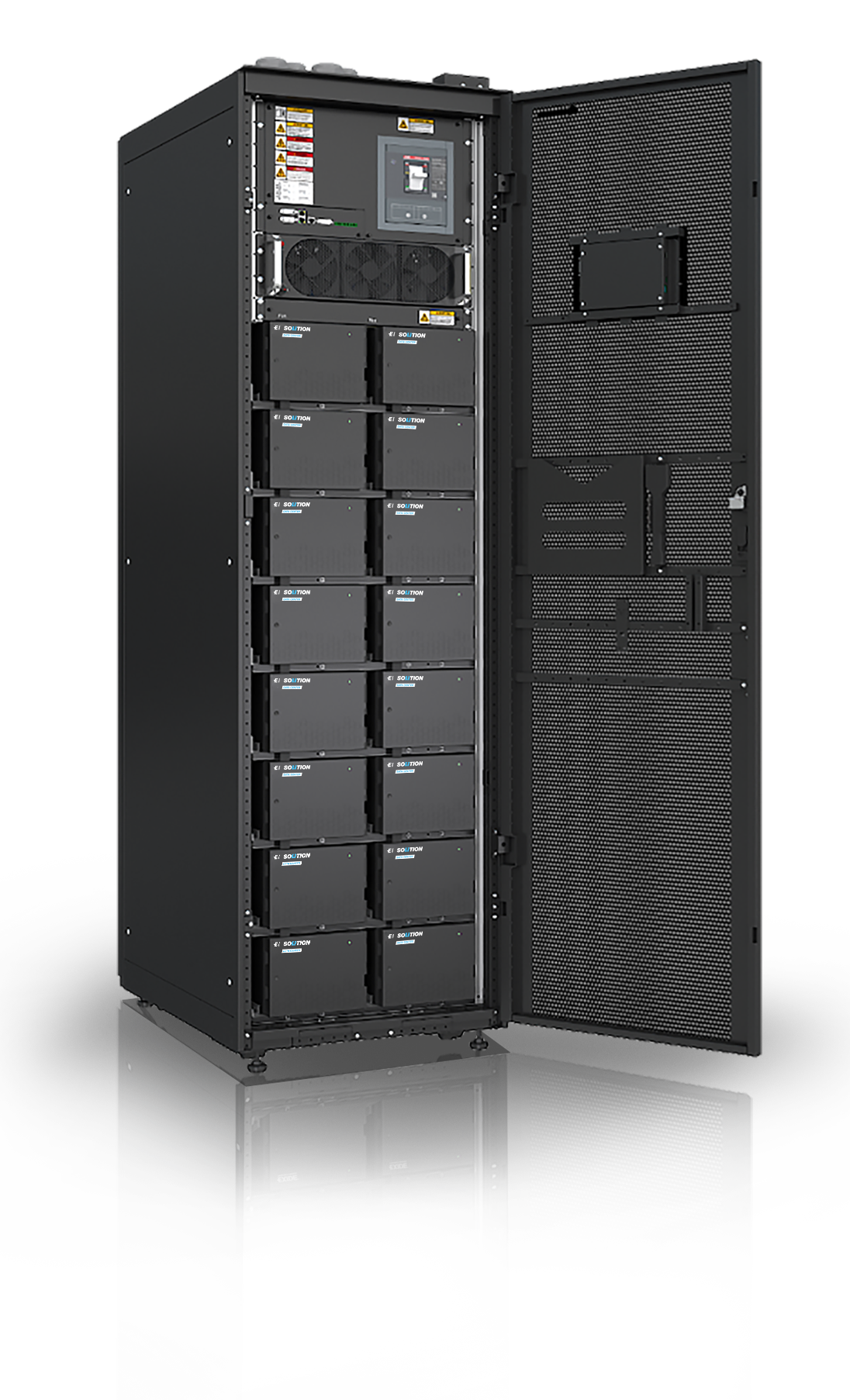

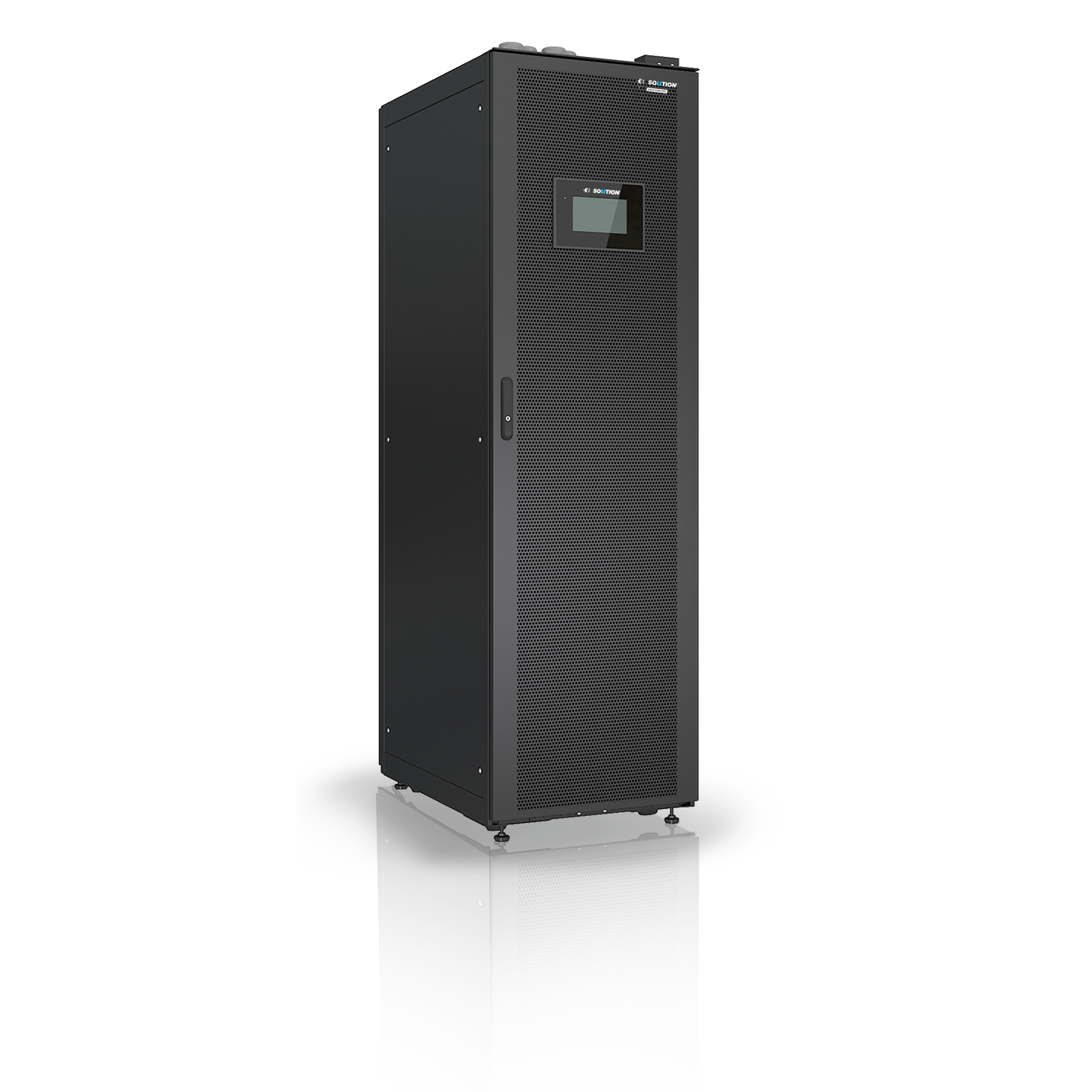

Our new Solition Data Center energy storage system boasts intelligent features, which culminate in safety and reliability, longevity, space savings and easy-to-manage maintenance. Based on Li-ion battery technology, the system supports the mix of new and used batteries and includes a three-level battery management system (BMS). These qualities ensure an intelligent battery system that will reduce the total cost of ownership, in particular maintenance expenses. What’s more, its high cycle stability mirrors emerging market trends, such as the increase in decentralized energy solutions.

Tough demands outside, smart solutions inside.

Our new Solition Data Center energy storage system boasts intelligent features, which culminate in safety and reliability, longevity, space savings and easy-to-manage maintenance. Based on Li-ion battery technology, the system supports the mix of new and used batteries and includes a three-level battery management system (BMS). These qualities ensure an intelligent battery system that will reduce the total cost of ownership, in particular maintenance expenses. What’s more, its high cycle stability mirrors emerging market trends, such as the increase in decentralized energy solutions.

Longevity - Cycle lifetime up to 5,000 times

Stability - Made with safest LiFePO4 (LFP) cell chemistry - highly stable, no thermal runaway

All-encompassing - Three-level BMS system ensures dependability

Safety - Integrated fire extinguishing system on battery module level - precise & quick fire control, non-proliferation

Flexibility - Active current balance control supports new and used battery cabinet combinations

Intelligence - Active voltage balance control allows for battery strings of different numbers to be connected in parallel with each-other

Cost-effective - Automatic grouping and capacity checks cut manual capacity test costs and avoid power failure risks

70% less footprint - high power density means a significant space saving

80% less operating and maintenance (O&M) costs thanks to its smart BMS

Items	Discription
Product model	LI-Ion Data Center 1.0
Battery cell material	LiFePO
Charging current	≤ 1C, 0.5C by default
Cycle life	Up to 5000 cycles @ 50 % DoD @ 25 °C
Nominal capacity	162 Ah / 62.20 kWh [6+6] – 162 Ah / 72.57 kWh [7+7] – 162 Ah / 82.94 kWh [8+8]
Capacity for calculating the backup time *	153 Ah / 58.75 kWh [6+6] – 153 Ah / 68.54 kWh [7+7] – 153 Ah / 78.33 kWh [8+8]
Weight	900 kg [6+6] – 1000 kg [7+7] – 1100 kg [8+8]
Dimension (WDH)	600 x 850 x 2000 mm
Self discharge	≤5 % / 3 months @ 0 to 30 °C
Fire protection	Module-level: Perfluorohexanone fire suppression fluid
Communication interface	RS485, Dry contacts, TCP IP, MODBUS on RS485 & MOBUS over TCP IP
Protection	Over temperature, over current, short circuit, overcharge, discharge, etc.
Charge voltage **	2.30 Vpc @ 25 °C – 32 AGM to 50 AGM blocks – 442 V to 690 V depending on the configuration
Discharge capability	1C to 6C: 60 min @ 50 kW or 10 min @ 300 kW ([7+7] cabinet from 16 to 30 °C)
IP Protection level	IP21 according to IEC60529 standard
Mounting type	Against the wall, reserve at least 800 mm from the front
Storage temperature	0 °C to 40 ºC
Transportation temperature	-40 °C to 60 ºC
Operating temperature	0 °C to 40 ºC (20 to 25 °C is recommended)
Relative humidity	5 % to 95 % (no condensation)
Max. operating altitude	4000 m, derating is required if the altitude exceeds 1000 m
Heat dissipation at rated power***	[8+8] cabinet: 2.65kW - [7+7] cabinet: 2.35kW - [6+6] cabinet: 2.05kW
