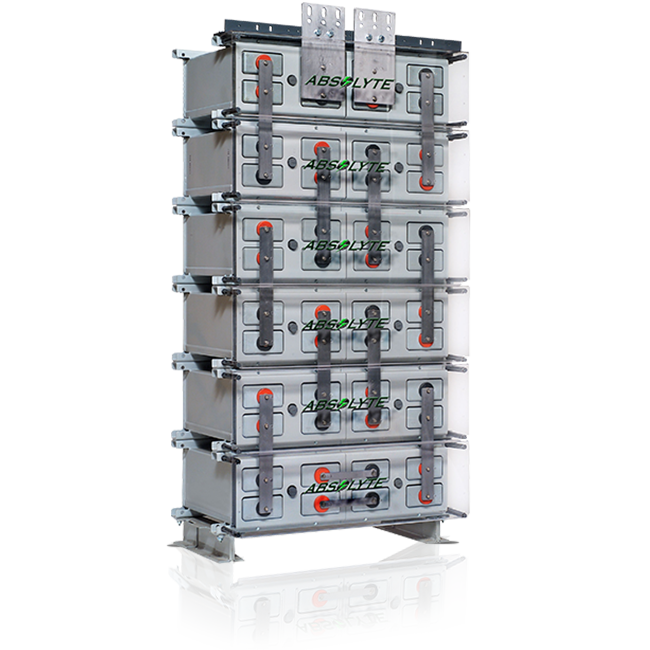

Absolyte® GX

Absolyte® GX 2-volt battery cells are a proven power solution for telecommunications, UPS, electric utility, railroad, and renewable energy applications. Designed and optimized for standby float, high rate, or deep cycling.

  • Nominal Capacity Range: 2,000 – 6,000 amp-hours @ 77°F / 25°C
  • Nominal Capacity Range: 4,063 – 6,095 watts per cell @ 77°F / 25°C
  • Design Life: 20 years @ 77°F / 25°C
  • Cycle Life: 1,200 cycles @ 80% Depth of Discharge
  • Operating Temperature Range: -40°F / -40°C to 122°F / 50°C
  • Patented lead-calcium-tin-silver positive-plate alloy reduces grid corrosion
  • Fully recyclable

More Views

Features & Benefits

Teleliikenteen akut

  1. AGM technology

    Valve regulated lead battery with electrolyte fixed in an absorbent glass mat (AGM)

  2. High-quality polypropylene plastics / steel-module packaging

    Flame retardant (UL94 V-0) plastic option is available; Heavy-duty steel tray modules serve as an integrated racking system

  3. Superior terminal post design

    Front-accessible 6 mm female posts with copper alloy insert; Enhanced terminal area aids access for maintenance and battery health assessment tools

  4. Environmentally friendly

    Fully recyclable: Resource-saving and low CO2 footprint

Teleliikenteen akut
Teleliikenteen akut

AGM technology

Valve regulated lead battery with electrolyte fixed in an absorbent glass mat (AGM)

High-quality polypropylene plastics / steel-module packaging

Flame retardant (UL94 V-0) plastic option is available; Heavy-duty steel tray modules serve as an integrated racking system

Superior terminal post design

Front-accessible 6 mm female posts with copper alloy insert; Enhanced terminal area aids access for maintenance and battery health assessment tools

Environmentally friendly

Fully recyclable: Resource-saving and low CO2 footprint

Documents & Resources

Documents & Resources

Multimedia Center

Documents & Resources

Data Sheet
Absolyte® GX Brochure
Multimedia Center
What is AGM Technology?

Absorbed Glass Mat (AGM) technology batteries are a type of Valve Regulated Lead Acid (VRLA) battery that use a material manufactured from very fine glass fibers. The AGM material acts as a separator...
