Product overview
![](https://www.exidegroup.com/cn/sites/default/files/2022-11/EXIDE-LOGO.png)

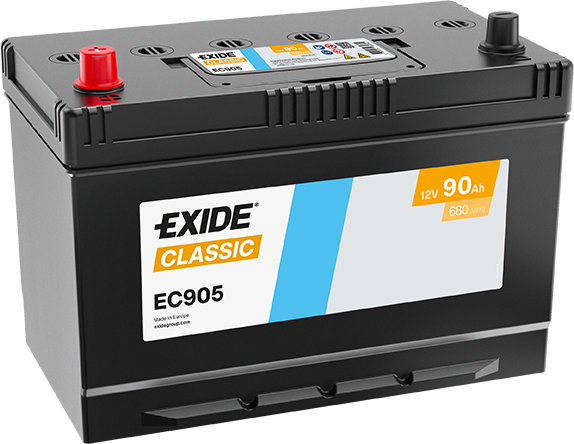

Classic EC905
Part number
EC905
Technology
Flooded
Voltage
12 V
Capacity
90 Ah
CCA
680 A
Length
306 mm
Width
173 mm
Height
222 mm
Box size
D31
Polarity
ETN 1
Terminal Type
EN taper post
Hold Down
Korean B1
Weights (subject of variation)
19.90 kg
OE Cross-References:
01579A112KDP370APU090CH1ULP370APE090CH1
01579A112KDP370APU090CK1ULP370APE090CK1
XI600502113.1
APBAT951
![](/cn/sites/default/files/sharepoint/PCu7t1zcgU5l9ifQEYYUHDCqAISC1Bc_o00nCaAcnRU-large.png)
Polarity
![](/cn/sites/default/files/sharepoint/yJUCrqR61tXOskSrOAYW9OEOV9cV_DPDgfW5ttQ1gXA-large.png)
Terminal Type
![](/cn/sites/default/files/sharepoint/2ukj6VpEwZBWFAE-3_hIW3h1I-tcwwga4_sk-5NFyC8-large.png)
Hold Down
![](/cn/sites/default/files/sharepoint/Alu5uK5t-6zitczURMk3DbjeCNXWiKKNS0n7FfZq4V8-large.png)
